- Recommended fuel: 87 octane / up to 10% ethanol
- Recommended oil: Mercury FourStroke Oil 10W-30
- Propeller: Yes
- Color: Phantom Black

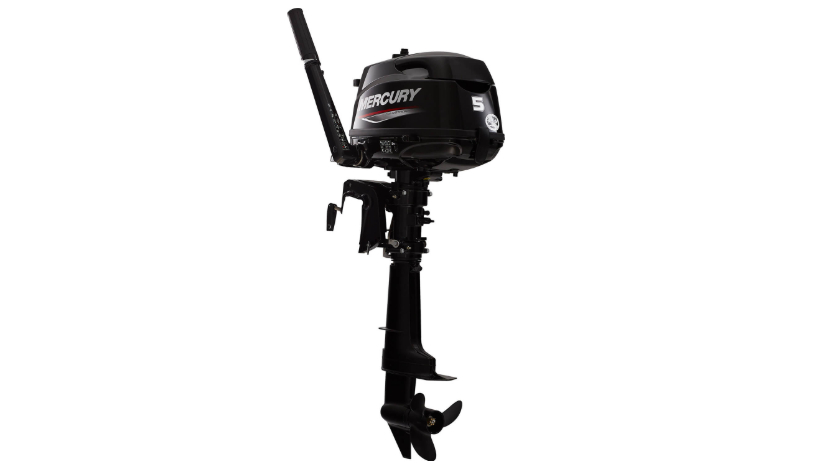

2022 Mercury 5MXLH FourStroke
Go with 5 Years Factory Backed Limited Coverage!
Purchase this Mercury outboard model and get a total of 5 years of Mercury factory-backed limited coverage! In addition to the standard 3-year warranty, you will also receive a 2-year Mercury Product Protection Gold plan!
- Horsepower: 5
- Engine type: 1 Cylinder
- Displacement (CID/CC): 7.5 / 123
- Bore and stroke: 2.32 x 1.77″ / 59 x 45 mm
- Full throttle RPM: 4500-5500
- Shaft length: 25 “
- Gearcase ratio: 2.15:1
- Shallow water trim range: 16 °
- Integrated fuel tank: 0.3 USG / 1.1 L
- Optional fuel tank: 3.2 USG / 12 L
- Dry weight: 57 (lightest model in its category) lbs
- Engine protection operator warning system: Low oil pressure , Over-rev
- Starting: Manual
- Steering: Tiller
- Fuel induction system: 2-valve pushrod (overhead valve)
- CARB star rating: 3
- Ignition: CDI w/electronic spark advance
- Fuel system: Carbureted
- Cooling system: Water-cooled with thermostat
- Gear shift: F-N-R
- Gearcase: Standard
- Trim system: Manual
- Trim positions: 6
- Exhaust system: Through prop
- Shallow water drive: Yes
